Ceramic heating elements Ø 36 mm
- for installation in protection tubes
- consisting of the ceramic coil support, the heating coil and the heat-resistant support rod
- for horizontal mounting
- Ceramic heating element for preheating of water, thermal oil, lubricating oil and hydraulic oil

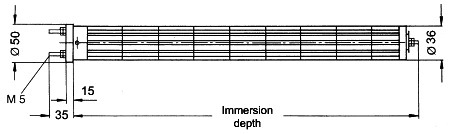

Ceramic sectional heaters Ø 36 mm for mounting in protection tubes Ø 42 mm
Technical data - Ceramic heating elements Ø 36 mm
Cat. No. | Diameter (mm) | Immersion depth (mm) | Voltage (Volt) | Capacity (Watt) | Weight (kg) |
---|---|---|---|---|---|
54360020 | 36 | 200 | 230 | 400 | 0,40 |
54360030 | 36 | 300 | 230 | 600 | 0,60 |
54360040 | 36 | 400 | 230 | 800 | 0,75 |
54360050 | 36 | 500 | 230 | 1000 | 0,95 |
54360060 | 36 | 600 | 230 | 1200 | 1,10 |
54360070 | 36 | 700 | 230 | 1400 | 1,45 |
54360080 | 36 | 800 | 230 | 1600 | 1,65 |
54360090 | 36 | 900 | 230 | 1800 | 1,80 |
54360100 | 36 | 1000 | 230 | 2000 | 2,00 |
54360110 | 36 | 1100 | 230 | 2200 | 2,20 |
54360120 | 36 | 1200 | 230 | 2400 | 2,35 |
54360140 | 36 | 1400 | 230 | 2800 | 2,50 |
54360160 | 36 | 1600 | 230 | 3200 | 2,85 |
54360180 | 36 | 1800 | 3x400 | 3600 | 3,20 |
54360200 | 36 | 2000 | 3x400 | 4000 | 3,55 |
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
