Cartridge heaters - G1½ with steel tube
- Cartridge heater consisting of a steel connector G 1½
with welded-in steel protection tube Ø 42 mm - with interchangeable ceramic heating insert
- with connection box
- protection class IP 65
- for horizontal mounting
- Used as tank heater and electric heater for lubricating
oil systems - Applications: Pre-heating of hydraulic oil and gear lubricant
oil, thermal oil and various industrial fluids - Please verify the permissible surface load

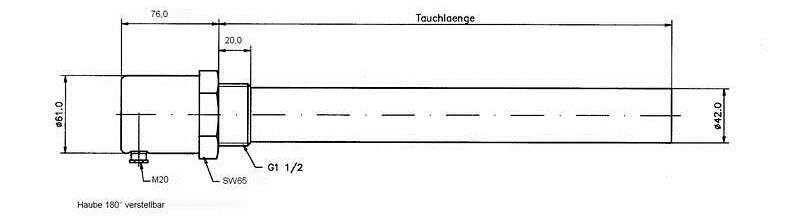

Cartridge heater Ø 42 mm with ceramic heating element Ø 36 mm
Technical data - Cartridge heaters Ø 42 mm
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Surface load (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 54591020 | 200 | 230 | 400 | 1,5 | 1,2 |
| 54591030 | 300 | 230 | 600 | 1,5 | 1,5 |
| 54591040 | 400 | 230 | 800 | 1,5 | 1,8 |
| 54591050 | 500 | 230 | 1000 | 1,5 | 2,0 |
| 54591060 | 600 | 230 | 1200 | 1,5 | 2,4 |
| 54591070 | 700 | 230 | 1400 | 1,5 | 2,7 |
| 54591080 | 800 | 230 | 1600 | 1,5 | 3,0 |
| 54591090 | 900 | 230 | 1800 | 1,5 | 3,3 |
| 54591100 | 1000 | 230 | 2000 | 1,5 | 3,6 |
| 54591110 | 1100 | 230 | 2200 | 1,5 | 3,9 |
| 54591120 | 1200 | 230 | 2400 | 1,5 | 4,2 |
| 54591140 | 1400 | 230 | 2800 | 1,5 | 4,8 |
| 54591160 | 1600 | 230 | 3200 | 1,5 | 5,4 |
| 54591180 | 1800 | 3 x 400 | 3600 | 1,5 | 6,0 |
| 54591200 | 2000 | 3 x 400 | 4000 | 1,5 | 6,6 |
Sheath material: Steel: Ø 42 mm; Stainless steel 1.4571: Ø 42 mm
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
