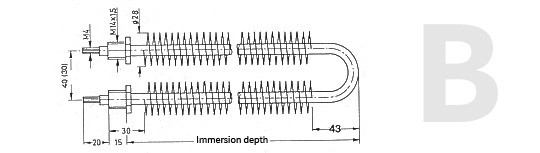

Finned tubular heaters B
- Finned heater consisting of a
tubular heater RHK Ø 8,5 mm; material: 1.4541 - bent into a U-shape, finned with stainless steel strip 10 mm and 200 fins per m
- bend unfinned and weakly heated
- with MS connector M14 x 1,5 x 12 mm
- The minimum order quantity is 6 pieces
Areas of application: Air pre-heating, furnaces and drying cabinets, heating element for air duct heaters
Finned tubular heater B with stainless steel
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Weight (kg) |
|---|---|---|---|---|
| 91810250|230|500 | 250 | 230 | 500 | 0,35 |
| 91810350|230|750 | 350 | 230 | 750 | 0,50 |
| 91810450|230|1000 | 450 | 230 | 1000 | 0,65 |
| 91810650|230|1500 | 650 | 230 | 1500 | 0,90 |
| 91810850|230|2000 | 850 | 230 | 2000 | 1,15 |
Available on request: Available on request: other lengths, capacities, unheated zones, voltages, materials and thread sizes.
