Screw plug immersion HEATERS | EHK series
copper, nickel-plated with dry-running protection

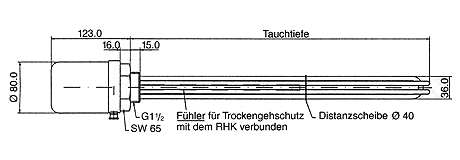

- Heating element consisting of brass connector G 1 1/2
- With 3 U-shaped hard-soldered copper immersion heater
tubes Ø 8,5 mm - 3-pole dry-running protection 165 °C - 30K, 3 x 40 Amp.
- Screw plug immersion heater with zinc-plated hood
- protection system IP 30 / IP 65
- Immersed parts are nickel-plated
Screw plug immersion heater, nickel-plated, with dry-running protection
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 11205023 | 230 | 230/400 | 3000 | 9,9 | 1,55 |
| 11205033 | 330 | 230/400 | 4500 | 9,7 | 1,72 |
| 11205042 | 420 | 230/400 | 6000 | 9,9 | 1,85 |
| 11205053 | 530 | 230/400 | 7500 | 9,6 | 2,02 |
| 11205062 | 620 | 230/400 | 9000 | 9,7 | 2,17 |
| 11205079 | 790 | 3 x 400 | 12000 | 9,9 | 2,43 |
Material heating element: copper nickel-plated
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
