Flange immersion HEATERS - Cartridge type
- with interchangeable ceramic heating elements
see: cartridge heaters - making it possible to replace the heating elements
without draining off the oil or liquid - designed for heating up tanks and vats with hydraulic oil, lubricating oil or water-glycol mixtures
- standard and customized flanges are supplied in nominal diameters ranging from DN50 up to DN800

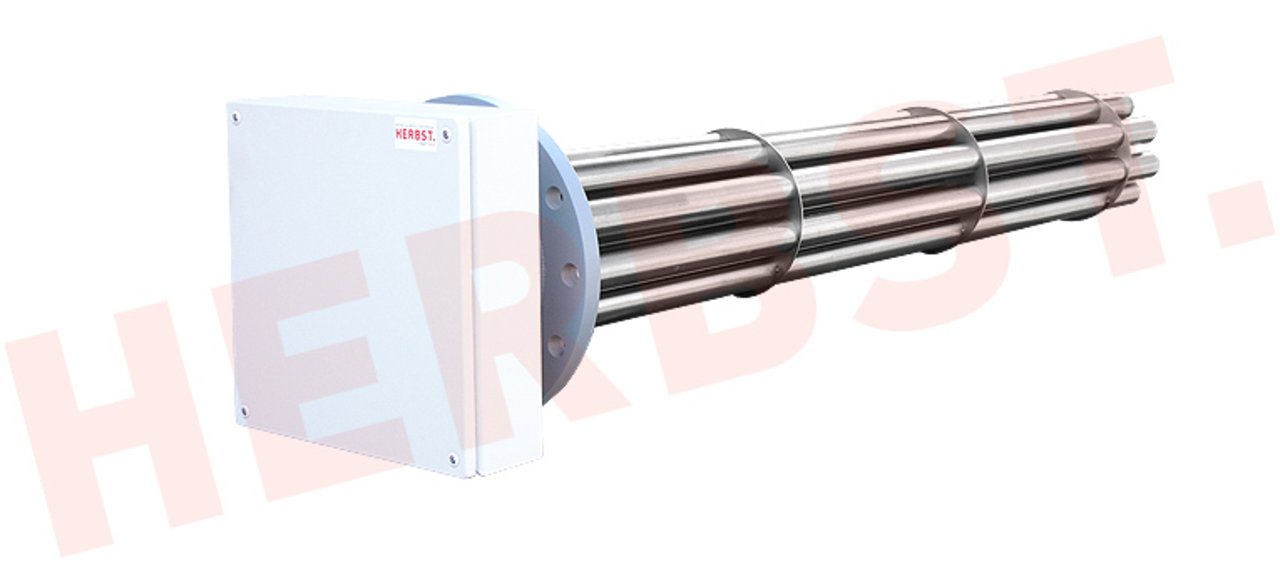

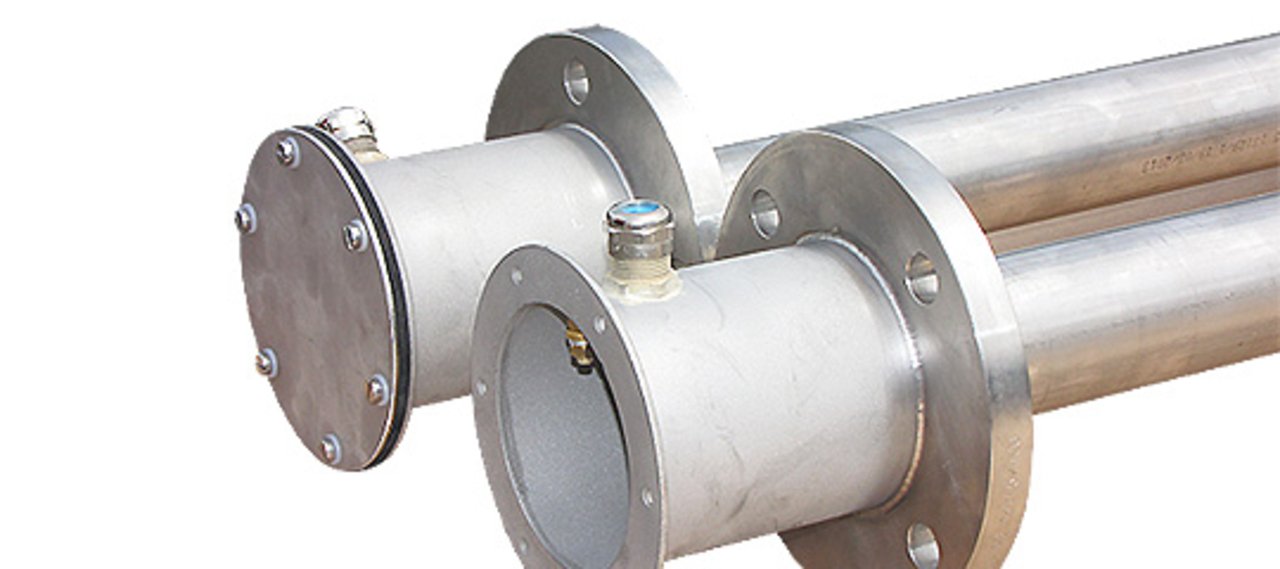

Heating flange with cartridge heaters and ceramic heating elements
Flange plates equipped with cartridge heaters are particularly suitable for use in large tanks. The welded-in steel tubes contain exchangeable ceramic heating elements which can be replaced individually without draining the fluid.
The steel tubes have selectable diameters of Ø 36 mm, Ø 42 mm and Ø 52 mm. The TIG welding process is mainly used to connect them with the flange. The flange heaters should be mounted horizontally.
Similar to standard flange heaters the electrical connection is contained in a housing directly on the flange plate. Control cabinet with protection system IP54 and IP65, integrated thermostat and temperature limiter are optionally available.
