[Translate to english:] Tankheizer und Tankheizkörper mit Magnetfußhaltern zur einfachen Nachrüstung von Öltanks und Behältern
Product inquiry
We would be pleased to provide you with an individual offer and would be glad to advise you personally:
Tel: +49 (0) 2394 / 91 11 36

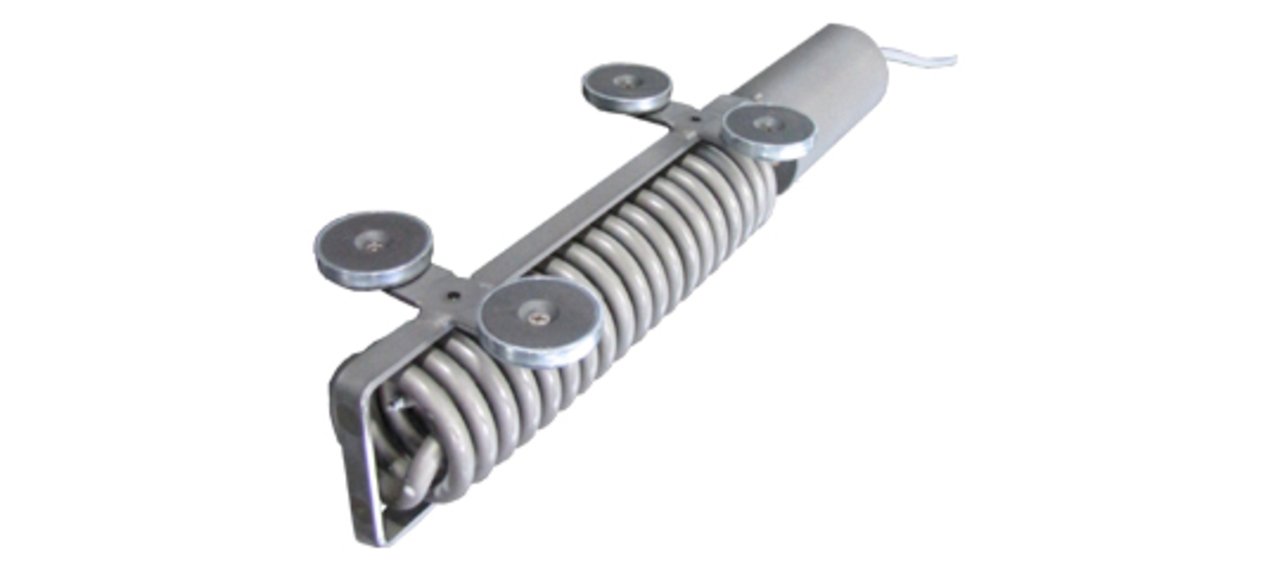

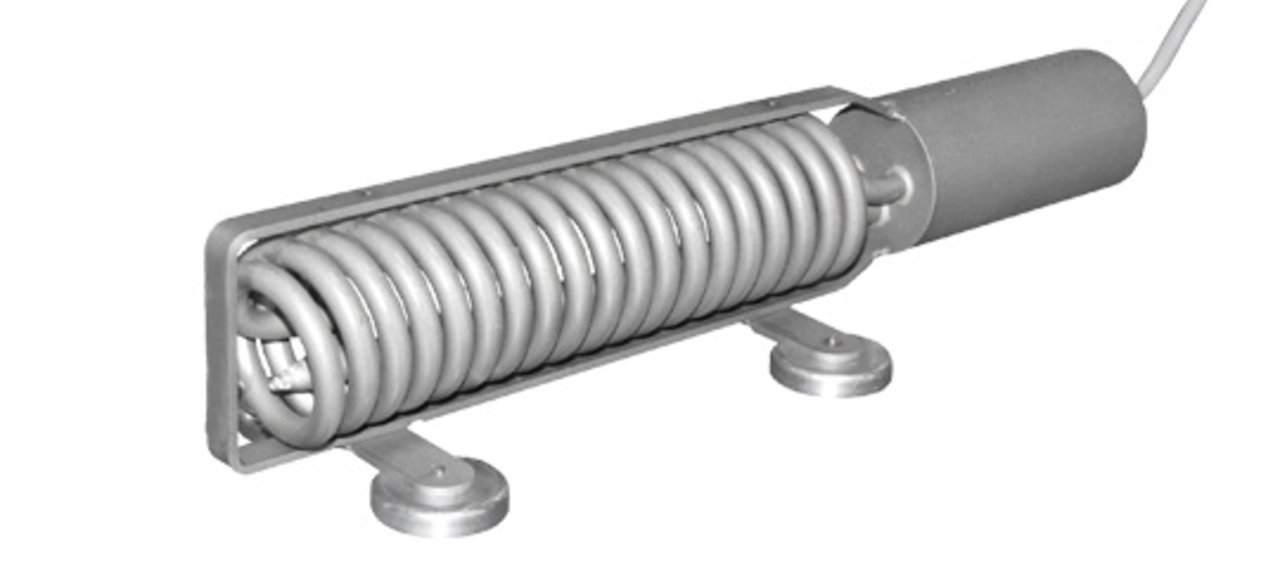

Tank heater - 4 magnets
- Tank heater for heating of hydraulic oils and fluids in tanks and other containers
- Heating element consisting of a coiled tubular heater RHK Ø 8,5; material: 1.4541 with connection box made of steel
- with 1-pole thermostat 20 °C ±4K,
- with 2,5 meters (alternative: 5/10/15 m) feed cable (oil resistant)
- Tank heater with 4 magnetic feet for increased stability in portable tanks
- Stainless steel version [VA] available
Technical data: Tank heaters with 4 magnetic feet
| Cat. No. | Overall length (L in mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 9850 | 270 | 230 | 250 | 1,2 | 1,3 |
| 9851 | 290 | 230 | 250 | 0,6 | 1,55 |
| 9852 | 290 | 230 2x400 | 500 | 1,2 | 1,55 |
| 9853 | 400 | 230 | 500 | 0,6 | 1,8 |
| 9854 | 400 | 230 2x400 | 1000 | 1,2 | 1,8 |
| 9853-VA | 400 | 230 | 500 | 0,6 | 1,8 |
| 9854-VA | 400 | 230 | 1000 | 1,2 | 1,8 |
Available on request: other heating capacities, voltages and temperature adjustments.
